How to Install a Back Pressure Valve: A Step by Step Guide to Improving Operational Efficiency
Introduction
Heavy jargon aside, installing a
back pressure valve (BPV) in the complex field of oil and gas production
requires careful planning, precise execution, and rigorous safety
implementations. A meticulously structured Standard Operating Procedure (SOP)
guarantees the effectiveness, integrity, and safety of the installation
procedure. This guide provides comprehensive steps on installing a back
pressure valve, outlines necessary steps to improve operational efficiency, and
ensures safety for users.

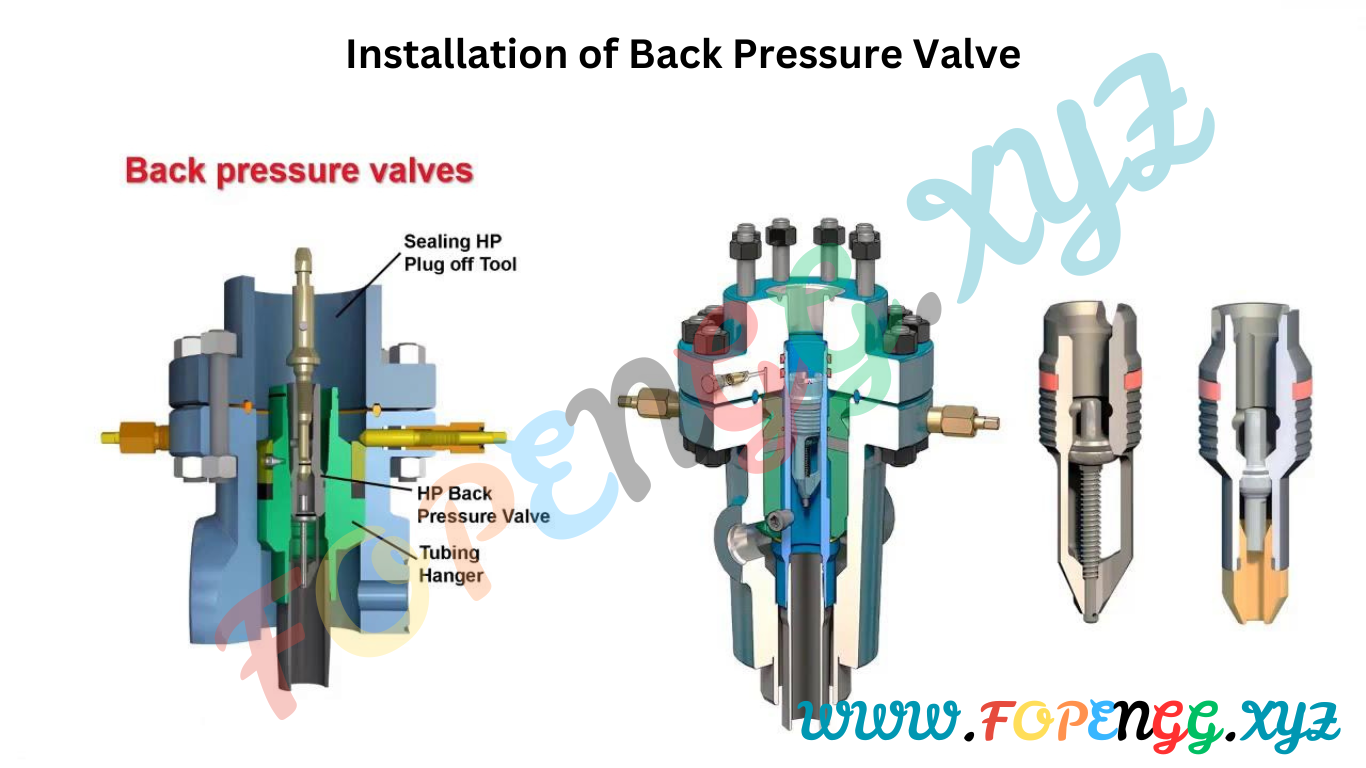

Back Pressure Valves (BPV) Explained
A Back Pressure Valve (BPV) is an
important part of the well head and is used to hold pressure and prevent
backward flow as well as regulated hydrocarbon production. Common applications
include well intervention, production optimization, and pressure control during
maintenance operations.
Benefits of Installing a BPV
Avoids backflow: Helps keep fluids
from flowing backward into the wellbore, protecting equipment in the process.
Improves well integrity: contributes
to well-pressure maintenance and prevents uncontrolled pressure changes.
Assists maintenance
operations: Allows for quick and safe well intervention with minimal pressure
drop.
Enhances production efficiency: Mammalian
balance of wealth by managed pressure and flow rates
BPV Installation — Standard
Operating Procedure (SOP)
The SOP below summarizes the
critical steps for safe and effective BPV installation:
✔Preliminary Checks
✔First, the installation process: Confirm that CV, HMV, HWV, and TKV are all shut in to isolate the system
✔Validate the well pressure and
evaluate the operating statuses.
✔Ensure that all required tools and safety
equipment is available and functional.
Rigging Up BPV
✔Assemble tools needed and rig up the
BPV lubricator
✔Federal regulations require you to
ensure that the working area is inspected for hazards.
✔Tool Preparation
✔Gather tools needed for the BPV
Setting.
✔Verify that tools are compatible
with design configuration and wellhead pressure ratings.
✔Ensure the tools are ready with a
functionality test.
Rigging Up the BPV Lubricator
✔Configure/Assemble BPV Lubricator
& Tools/ BPV Components (10M psi)
✔Tighten all connections and check
that seals and pressure barriers are intact.
✔Flushes and static pressure tests of
lubricators
Steps of the Top Kill: 1) Open the
crown valve (CV), TKV (tubing kill valve), and Lo-torque on TRV (tubing
retrieval valve).
✔Use a mixture of water/glycol to
flush the lubricator and remove any air pockets.
✔Methods (Materials and Equipment)
Annular, lubricator — Pressure test the lubricator to 7500 psig — in a water
and 30% glycol mixture — to prove integrity.
Pressure Equalization
✔Bleed-off the pressure slowly via
the blow-down line until the hydraulic master valve (HMV) sees equal pressure.
✔Next step only if you have
stabilized pressure.
✔Lockout Cap Installation
✔Slightly open up the hydraulic
master valve (HMV) and place the lockout cap.
✔Requires a lockout cap for
distortions or accidental valve closure to make sure that you have a seamless
install process.
special role Setting BPV
✔Run the BPV downhole in the wellbore and
get in the right position.
✔In your setting connect tool lubricator.
✔Verify BPV engagement and confirmation to the wellhead assembly.
✔Pressure Release
✔Release any trapped pressure within
the tree and lubricator via the blow-down line.
✔Gradual power down to avoid
overpressure spikes
✔Pressure Monitoring
✔If the BPV is successful, you should
monitor the tree pressure for 10 minutes.
✔Before proceeding ensure pressure is
stable and there are no leaks.
Valve Closure
✔Slowly close the crown valve (CV)
while the tool is in the lubricator.
✔Prior to opening the CV and closing
the hydraulic master valve (HMV), make sure that the tool is fully retracted.
✔Finalization of the BPV
Installation, securing the wellhead components.
✔Blowdown Line Opening
✔Release any pressure in the system
by opening the blowdown line.
✔This is to ensure operational safety
and to avoid any sudden increase of pressure.
Final Valve Closure
✔Two drops on the crown valve (CV)
must be closed to complete the installation.
✔Verify all connections are secure
and system pressure is stabilized.
Rigging Down
✔Get a cleaning on BPV lubricator and
tools.
✔Perform a wellhead installation
check.
✔All equipment should be secured and
stored to minimize damage/contamination.
Completion of Installation
✔Follow up on your checks before
finishing up the installation process.
✔Document everything, pressure
readings, tool settings, verification.
✔Hold a debrief to discuss the
process and identify improvements.
Safety Considerations
✔Because installing a BPV touches
high-pressure systems, safety is paramount. Precautions that should be taken
are as follows:
✔Personal Protective Equipment (PPE):
Always use appropriate safety equipment such as gloves, safety goggles, and
flame-resistant clothes.
✔Pressure Management: Bypass pressure
tests at your peril; always ensure equalization before attempting any step.
✔Observe this very important instruction:
Communication: All personnel involved in the operation must communicate
clearly.
✔Emergency Preparedness: Maintain and
regularly review accessible emergency response plans, and ensure all relevant
employees are trained to address potential continuity incidents.
✔Inspect Equipment: Ensure that tools
are regularly checked and maintained to minimize the risk of breakdown and
accident.
Conclusion
Back pressure valve installation is
a highly skill-intensive task, which is also very critical and has to be done with
complete precision and safety. A detailed SOP that outlines the step by step
procedures of safe working coupled with safety measures affect overall
efficiency of the installation process and keep operators safe as well. The
BPV, when correctly installed, can boost efficiency, curb backflow, and promote
sustainable growth within oil and gas sectors.
Note: BPV installation can enhance
well performance, mitigate risks, and optimize hydrocarbon production provided
proper installation and strict preventive measures are in place. Oil and gas
operators can maximize operational effectiveness, keep well integrity, and
remain sustainable by focusing on safety and quality of the work.
Following this step-by-step guide, oil and gas professionals will be able to have a smooth BPV installation, follow industry best practices, and increase productivity. Follow FOPENGG for more articles on petroleum engineering processes.
